2009 Apple iMac 11,1

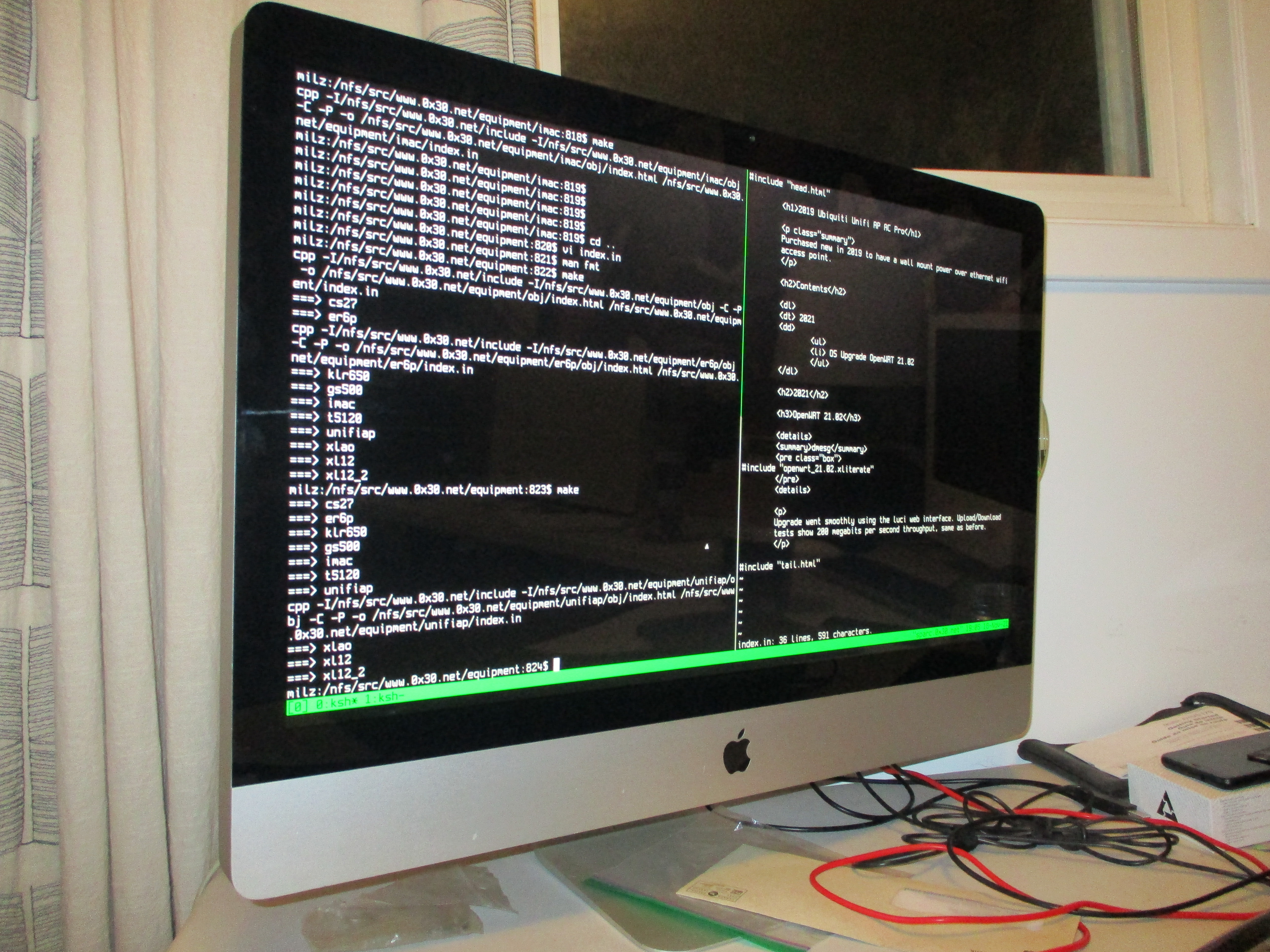

Given to me inoperable in 2015 this now my main workstation.

Contents

2015
2019
2020
2021
2022

2015

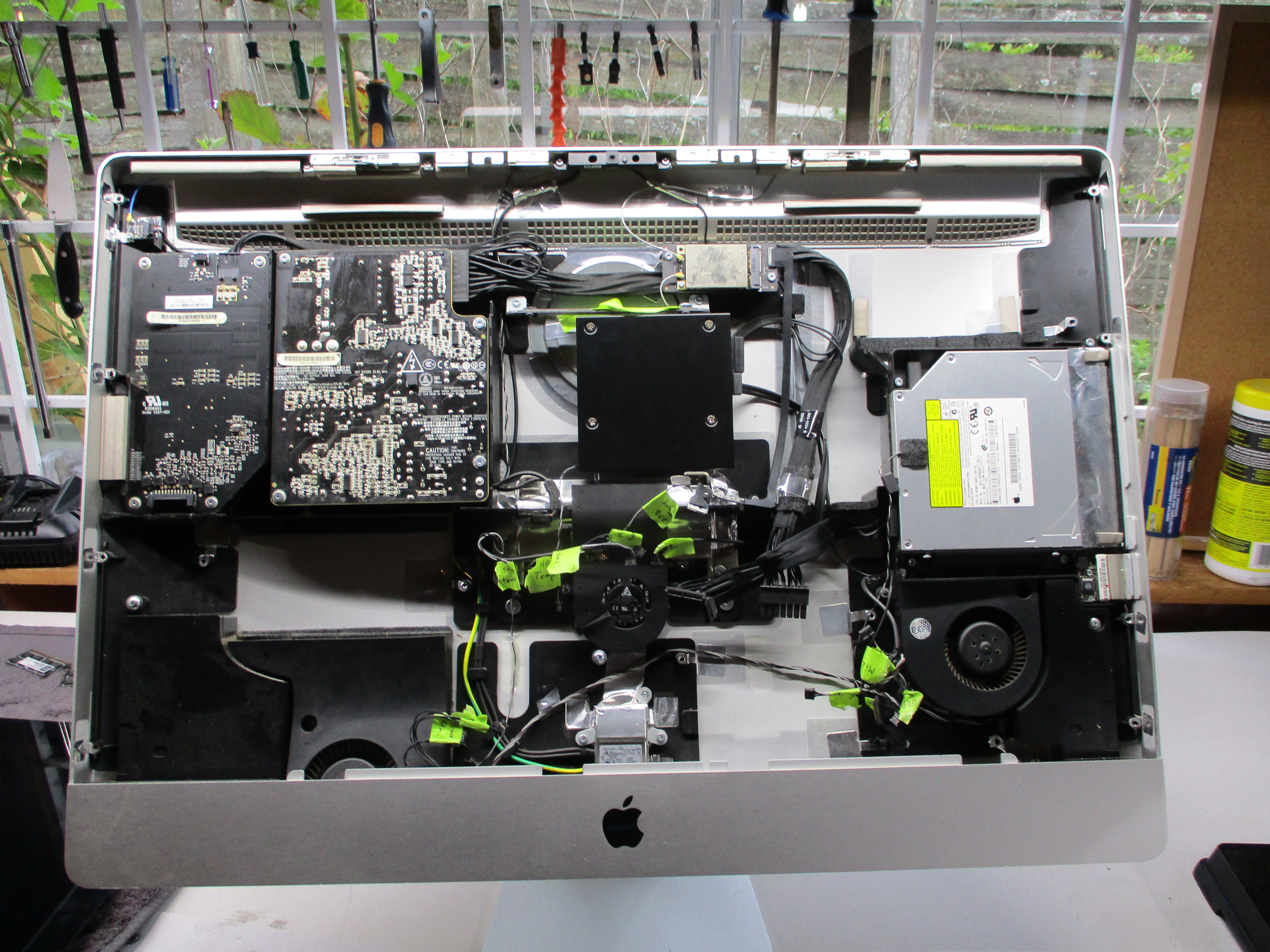

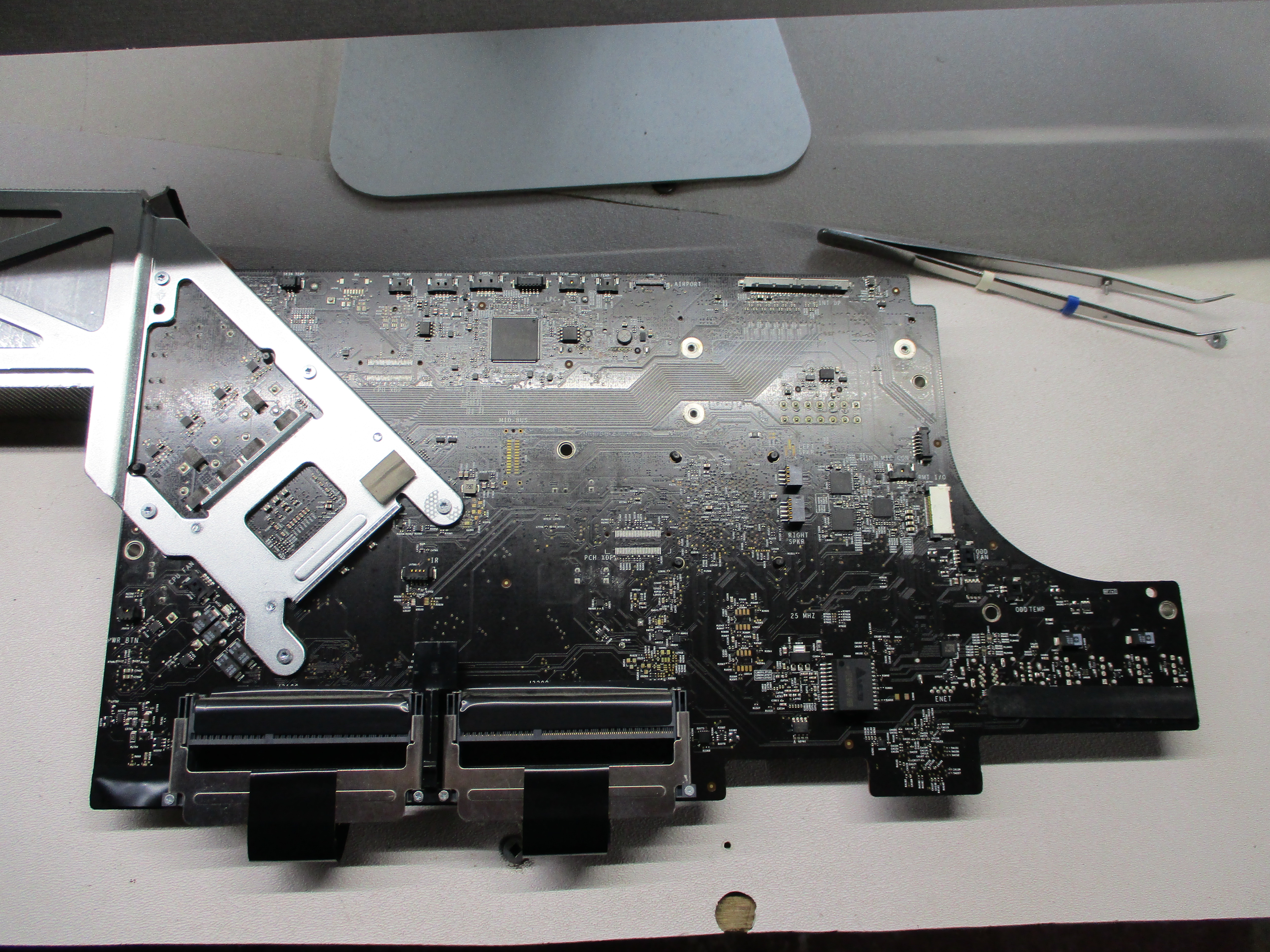

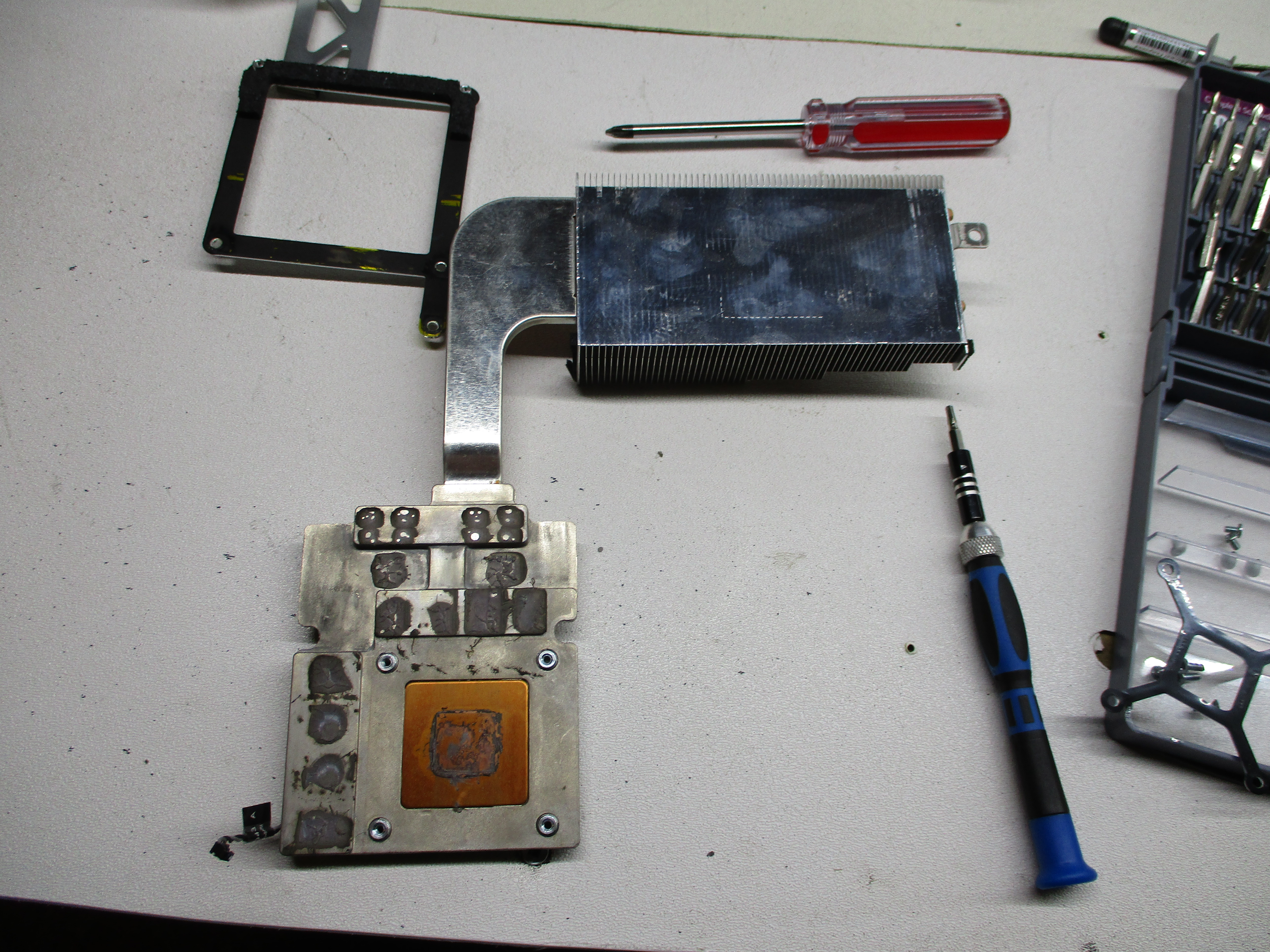

Repair GPU

This computer was orignally owned by my parents who bought it brand new in 2009. In 2015 however it started to have artifacts on the screen and became unusable to them. They asked if I wanted it, which I did.

The Radeon GPU's on the 2009 - 2011 iMac's are well known for not lasting very long. There is speculation about manufacturing defects. It seemed common that the internal connections on the GPU circuit board would break, causing malfunction.

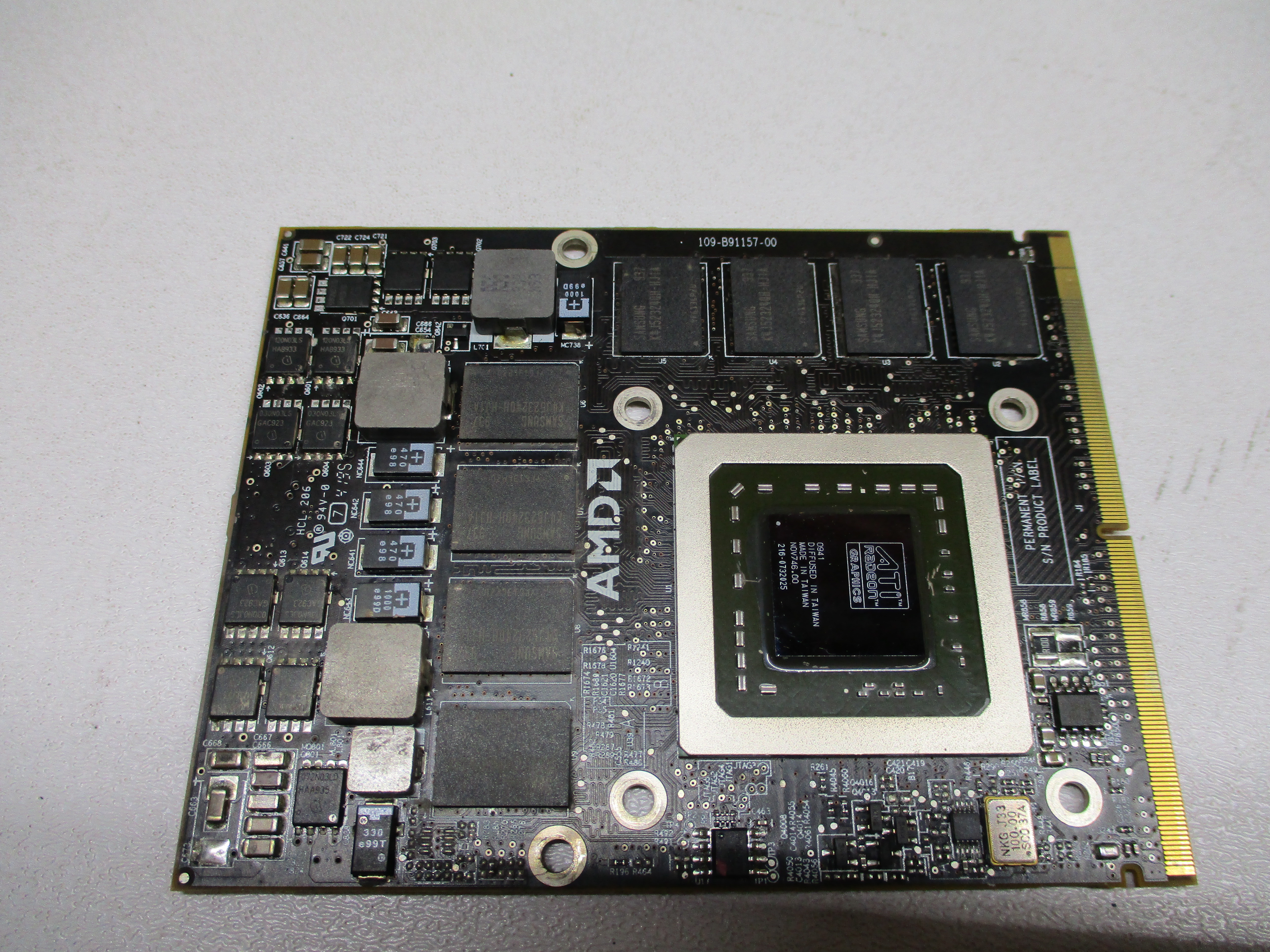

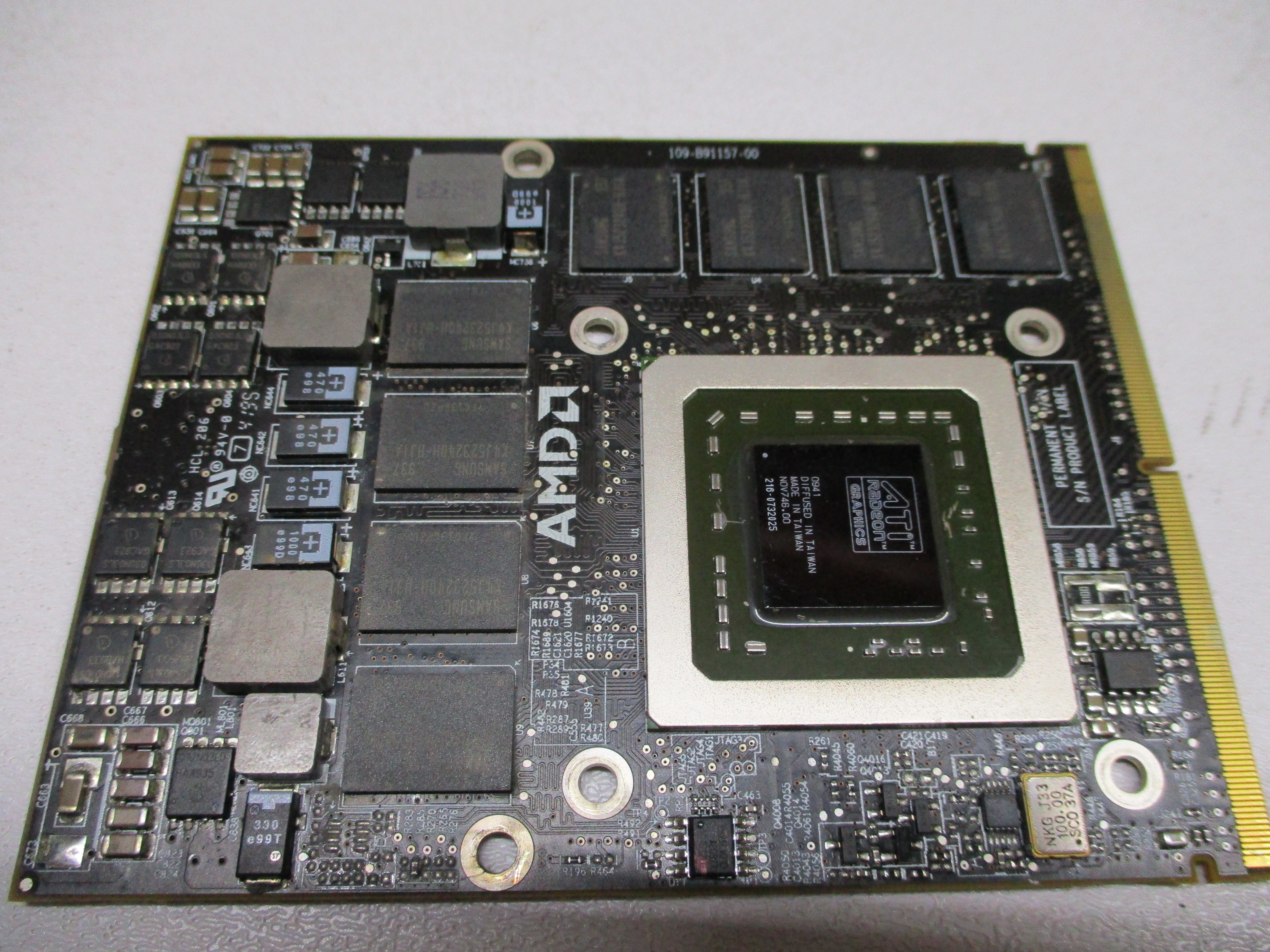

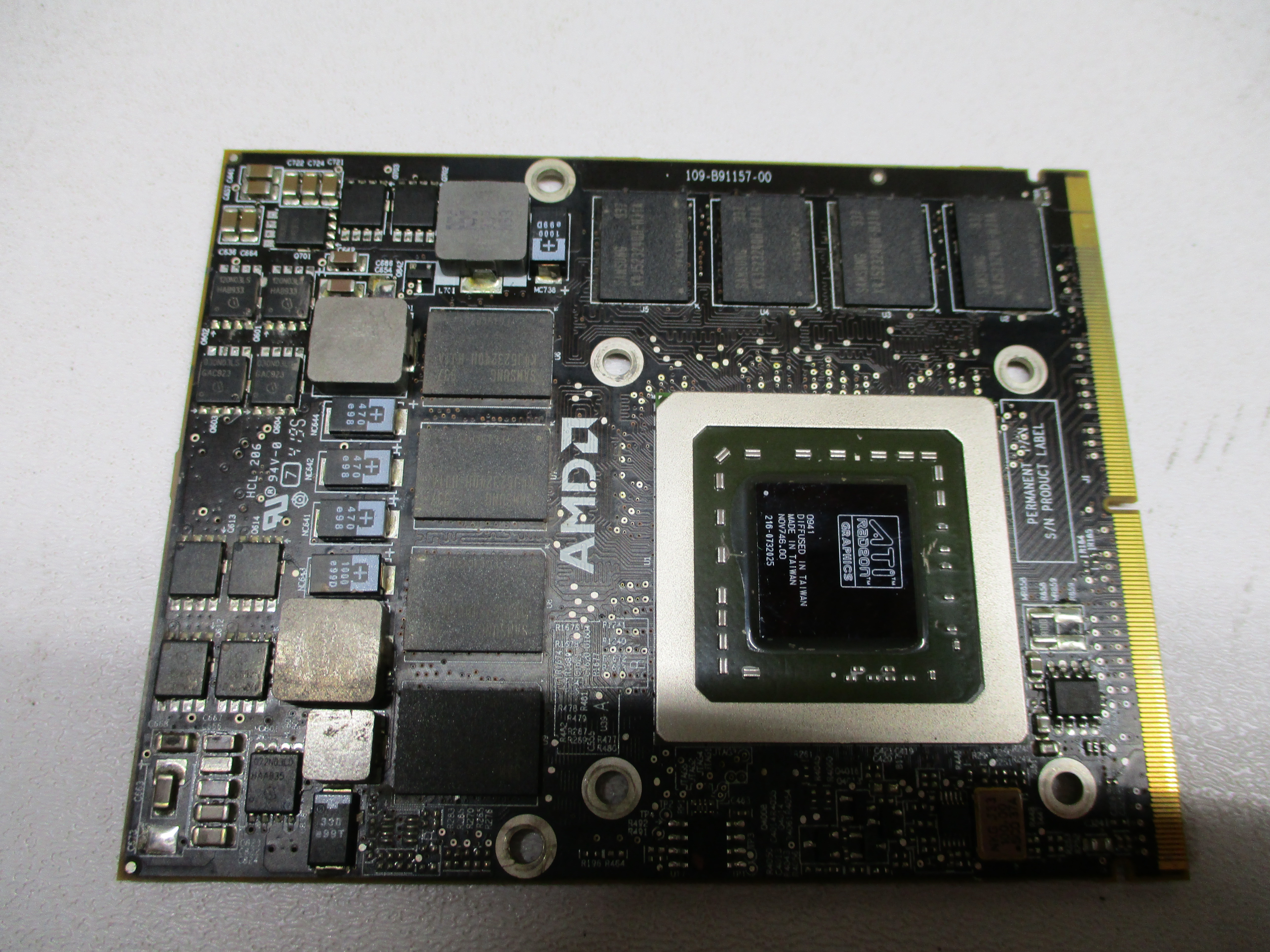

Chasing that hunch, I sent the Radeon HD4850 away to be 're-balled'. Apparantly the GPU is taken off the circuit board and re-soldered onto it. I paid for a service on eBay, sending them the card in the mail to Rancho Cucamunga CA. When the card came back, it worked perfectly again.

2019

OpenBSD 6.6

dmesg
OpenBSD 6.6 (GENERIC.MP) #372: Sat Oct 12 10:56:27 MDT 2019
    deraadt@amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
real mem = 17152987136 (16358MB)
avail mem = 16620433408 (15850MB)
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.4 @ 0xbf65d000 (80 entries)
bios0: vendor Apple Inc. version "63.0.0.0.0" date 06/14/2019
bios0: Apple Inc. iMac11,1
acpi0 at bios0: ACPI 4.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP ASF! HPET APIC APIC MCFG SBST ECDT SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P2(S4) GFX0(S4) EC__(S3) HDEF(S4) RP01(S4) GIGE(S5) RP02(S4) ARPT(S5) RP03(S4) RP04(S4) GLAN(S4) EHC1(S3) EHC2(S3)
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.36 MHz, 06-1e-05
cpu0: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 8 var ranges, 88 fixed ranges
cpu0: apic clock running at 133MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu1: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu2: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu3: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
cpu4 at mainbus0: apid 4 (application processor)
cpu4: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu4: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu4: 256KB 64b/line 8-way L2 cache
cpu4: smt 0, core 2, package 0
cpu5 at mainbus0: apid 5 (application processor)
cpu5: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu5: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu5: 256KB 64b/line 8-way L2 cache
cpu5: smt 1, core 2, package 0
cpu6 at mainbus0: apid 6 (application processor)
cpu6: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu6: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu6: 256KB 64b/line 8-way L2 cache
cpu6: smt 0, core 3, package 0
cpu7 at mainbus0: apid 7 (application processor)
cpu7: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu7: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu7: 256KB 64b/line 8-way L2 cache
cpu7: smt 1, core 3, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 24 pins, remapped
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiec0 at acpi0
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus 1 (P0P2)
acpiprt2 at acpi0: bus 2 (RP01)
acpiprt3 at acpi0: bus 3 (RP02)
acpiprt4 at acpi0: bus 4 (RP03)
acpiprt5 at acpi0: bus 6 (RP04)
acpicpu0 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu1 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu2 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu3 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu4 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu5 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu6 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu7 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpipci0 at acpi0 PCI0: 0x00000004 0x00000011 0x00000001
acpicmos0 at acpi0
"APP0001" at acpi0 not configured
"APP000C" at acpi0 not configured
acpibtn0 at acpi0: PWRB
"APP0002" at acpi0 not configured
acpibtn1 at acpi0: SLPB
acpipci1 at acpi0 CPBG: _OSC failed
cpu0: using IvyBridge MDS workaround
cpu0: Enhanced SpeedStep 2926 MHz: speeds: 2794, 2793, 2660, 2527, 2394, 2261, 2128, 1995, 1862, 1729, 1596, 1463, 1330, 1197 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core DMI" rev 0x11
ppb0 at pci0 dev 3 function 0 "Intel Core PCIE" rev 0x11
pci1 at ppb0 bus 1
"ATI Mobility Radeon HD 4850" rev 0x00 at pci1 dev 0 function 0 not configured
azalia0 at pci1 dev 0 function 1 "ATI Radeon HD 48xx HD Audio" rev 0x00: msi
azalia0: no supported codecs
"Intel Core Management" rev 0x11 at pci0 dev 8 function 0 not configured
"Intel Core Scratch" rev 0x11 at pci0 dev 8 function 1 not configured
"Intel Core Control" rev 0x11 at pci0 dev 8 function 2 not configured
"Intel Core Misc" rev 0x11 at pci0 dev 8 function 3 not configured
"Intel Core QPI Link" rev 0x11 at pci0 dev 16 function 0 not configured
"Intel Core QPI Routing" rev 0x11 at pci0 dev 16 function 1 not configured
uhci0 at pci0 dev 26 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 21
ehci0 at pci0 dev 26 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 16
usb0 at ehci0: USB revision 2.0
uhub0 at usb0 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
azalia1 at pci0 dev 27 function 0 "Intel 3400 HD Audio" rev 0x06: msi
azalia1: codecs: Cirrus Logic CS4206
audio0 at azalia1
ppb1 at pci0 dev 28 function 0 "Intel 3400 PCIE" rev 0x06: msi
pci2 at ppb1 bus 2
bge0 at pci2 dev 0 function 0 "Broadcom BCM5764" rev 0x10, BCM5784 A1 (0x5784100): msi, address d4:9a:20:d0:73:b5
brgphy0 at bge0 phy 1: BCM5784 10/100/1000baseT PHY, rev. 4
ppb2 at pci0 dev 28 function 1 "Intel 3400 PCIE" rev 0x06: msi
pci3 at ppb2 bus 3
athn0 at pci3 dev 0 function 0 "Atheros AR9281" rev 0x01: apic 2 int 17
athn0: AR9280 rev 2 (2T2R), ROM rev 22, address d4:9a:20:55:97:d8
ppb3 at pci0 dev 28 function 2 "Intel 3400 PCIE" rev 0x06: msi
pci4 at ppb3 bus 4
ppb4 at pci4 dev 0 function 0 "TI XIO2221 PCIE-PCI" rev 0x01
pci5 at ppb4 bus 5
"TI XIO2221 FireWire" rev 0x01 at pci5 dev 0 function 0 not configured
ppb5 at pci0 dev 28 function 3 "Intel 3400 PCIE" rev 0x06: msi
pci6 at ppb5 bus 6
ppb6 at pci0 dev 28 function 4 "Intel 3400 PCIE" rev 0x06: msi
pci7 at ppb6 bus 7
uhci1 at pci0 dev 29 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 19
ehci1 at pci0 dev 29 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 23
usb1 at ehci1: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
ppb7 at pci0 dev 30 function 0 "Intel 82801BA Hub-to-PCI" rev 0xa6
pci8 at ppb7 bus 8
pcib0 at pci0 dev 31 function 0 "Intel P55 LPC" rev 0x06
ahci0 at pci0 dev 31 function 2 "Intel 3400 AHCI" rev 0x06: msi, AHCI 1.3
ahci0: port 0: 3.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, Crucial_CT256M55, MU01> naa.500a07510c30ee66
sd0: 244198MB, 512 bytes/sector, 500118192 sectors, thin
cd0 at scsibus1 targ 1 lun 0: <OPTIARC, DVD RW AD-5680H, 3AHB> removable
ichiic0 at pci0 dev 31 function 3 "Intel 3400 SMBus" rev 0x06: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
spdmem1 at iic0 addr 0x52: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
itherm0 at pci0 dev 31 function 6 "Intel 3400 Thermal" rev 0x06
usb2 at uhci0: USB revision 1.0
uhub2 at usb2 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
usb3 at uhci1: USB revision 1.0
uhub3 at usb3 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
isa0 at pcib0
isadma0 at isa0
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
asmc0 at isa0 port 0x300/32: rev 1.54f554, 297 keys
pci9 at mainbus0 bus 255
pchb1 at pci9 dev 0 function 0 vendor "Intel", unknown product 0x2c51 rev 0x04
pchb2 at pci9 dev 0 function 1 vendor "Intel", unknown product 0x2c81 rev 0x04
pchb3 at pci9 dev 2 function 0 vendor "Intel", unknown product 0x2c90 rev 0x04
pchb4 at pci9 dev 2 function 1 vendor "Intel", unknown product 0x2c91 rev 0x04
pchb5 at pci9 dev 3 function 0 vendor "Intel", unknown product 0x2c98 rev 0x04
pchb6 at pci9 dev 3 function 1 vendor "Intel", unknown product 0x2c99 rev 0x04
pchb7 at pci9 dev 3 function 4 vendor "Intel", unknown product 0x2c9c rev 0x04
pchb8 at pci9 dev 4 function 0 vendor "Intel", unknown product 0x2ca0 rev 0x04
pchb9 at pci9 dev 4 function 1 vendor "Intel", unknown product 0x2ca1 rev 0x04
pchb10 at pci9 dev 4 function 2 vendor "Intel", unknown product 0x2ca2 rev 0x04
pchb11 at pci9 dev 4 function 3 vendor "Intel", unknown product 0x2ca3 rev 0x04
pchb12 at pci9 dev 5 function 0 vendor "Intel", unknown product 0x2ca8 rev 0x04
pchb13 at pci9 dev 5 function 1 vendor "Intel", unknown product 0x2ca9 rev 0x04
pchb14 at pci9 dev 5 function 2 vendor "Intel", unknown product 0x2caa rev 0x04
pchb15 at pci9 dev 5 function 3 vendor "Intel", unknown product 0x2cab rev 0x04
vmm0 at mainbus0: VMX/EPT
efifb0 at mainbus0: 2560x1440, 32bpp
wsdisplay0 at efifb0 mux 1: console (std, vt100 emulation)
wsdisplay0: screen 1-5 added (std, vt100 emulation)
uhub4 at uhub0 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uhub5 at uhub4 port 1 configuration 1 interface 0 "Apple Inc. BRCM2046 Hub" rev 2.00/1.00 addr 3
ugen0 at uhub5 port 1 "Apple Inc. Bluetooth USB Host Controller" rev 2.00/2.08 addr 4
uhidev0 at uhub5 port 2 configuration 1 interface 0 "Apple Computer product 0x820a" rev 2.00/1.00 addr 5
uhidev0: iclass 3/1, 1 report id
ukbd0 at uhidev0 reportid 1: 8 variable keys, 6 key codes
wskbd0 at ukbd0: console keyboard, using wsdisplay0
uhidev1 at uhub5 port 3 configuration 1 interface 0 "Apple Computer product 0x820b" rev 2.00/1.00 addr 6
uhidev1: iclass 3/1, 2 report ids
ums0 at uhidev1 reportid 2: 3 buttons
wsmouse0 at ums0 mux 0
uhidev2 at uhub4 port 4 configuration 1 interface 0 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 7
uhidev2: iclass 3/1
ukbd1 at uhidev2: 8 variable keys, 6 key codes
wskbd1 at ukbd1 mux 1
wskbd1: connecting to wsdisplay0
uhidev3 at uhub4 port 4 configuration 1 interface 1 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 7
uhidev3: iclass 3/0, 1 report id
uhid0 at uhidev3 reportid 1: input=7, output=0, feature=0
uhub6 at uhub1 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uvideo0 at uhub6 port 1 configuration 1 interface 0 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
video0 at uvideo0
ugen1 at uhub6 port 1 configuration 1 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
uhidev4 at uhub6 port 2 configuration 1 interface 0 "Apple Computer, Inc. IR Receiver" rev 2.00/0.16 addr 4
uhidev4: iclass 3/0, 38 report ids
uhid1 at uhidev4 reportid 36: input=4, output=0, feature=0
uhid2 at uhidev4 reportid 37: input=4, output=0, feature=0
uhid3 at uhidev4 reportid 38: input=4, output=0, feature=0
uhidev5 at uhub6 port 4 configuration 1 interface 0 "Logitech USB-PS/2 Optical Mouse" rev 2.00/21.00 addr 5
uhidev5: iclass 3/1
ums1 at uhidev5: 8 buttons, Z dir
wsmouse1 at ums1 mux 0
vscsi0 at root
scsibus2 at vscsi0: 256 targets
softraid0 at root
scsibus3 at softraid0: 256 targets
root on sd0a (218c297f8386644c.a) swap on sd0b dump on sd0b

2020

OpenBSD 6.8

dmesg
OpenBSD 6.8 (GENERIC.MP) #3: Thu Jan  7 07:35:39 MST 2021
    root@syspatch-68-amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
real mem = 17152987136 (16358MB)
avail mem = 16618106880 (15848MB)
random: good seed from bootblocks
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.4 @ 0xbf65d000 (80 entries)
bios0: vendor Apple Inc. version "63.0.0.0.0" date 06/14/2019
bios0: Apple Inc. iMac11,1
acpi0 at bios0: ACPI 4.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP ASF! HPET APIC APIC MCFG SBST ECDT SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P2(S4) GFX0(S4) EC__(S3) HDEF(S4) RP01(S4) GIGE(S5) RP02(S4) ARPT(S5) RP03(S4) RP04(S4) GLAN(S4) EHC1(S3) EHC2(S3)
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.35 MHz, 06-1e-05
cpu0: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 8 var ranges, 88 fixed ranges
cpu0: apic clock running at 132MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu1: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu2: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu3: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
cpu4 at mainbus0: apid 4 (application processor)
cpu4: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu4: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu4: 256KB 64b/line 8-way L2 cache
cpu4: smt 0, core 2, package 0
cpu5 at mainbus0: apid 5 (application processor)
cpu5: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu5: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu5: 256KB 64b/line 8-way L2 cache
cpu5: smt 1, core 2, package 0
cpu6 at mainbus0: apid 6 (application processor)
cpu6: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu6: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu6: 256KB 64b/line 8-way L2 cache
cpu6: smt 0, core 3, package 0
cpu7 at mainbus0: apid 7 (application processor)
cpu7: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu7: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu7: 256KB 64b/line 8-way L2 cache
cpu7: smt 1, core 3, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 24 pins, remapped
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiec0 at acpi0
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus 1 (P0P2)
acpiprt2 at acpi0: bus 2 (RP01)
acpiprt3 at acpi0: bus 3 (RP02)
acpiprt4 at acpi0: bus 4 (RP03)
acpiprt5 at acpi0: bus 6 (RP04)
acpipci0 at acpi0 PCI0: 0x00000004 0x00000011 0x00000001
acpicmos0 at acpi0
asmc0 at acpi0: SMC_ (smc-piketon) addr 0x300/0x20: rev 1.54f554, 297 keys
"APP000C" at acpi0 not configured
acpibtn0 at acpi0: PWRB
abl0 at acpi0: PNLF (backlight)
acpibtn1 at acpi0: SLPB
acpipci1 at acpi0 CPBG
acpicpu0 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu1 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu2 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu3 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu4 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu5 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu6 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu7 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
cpu0: using IvyBridge MDS workaround
cpu0: Enhanced SpeedStep 2926 MHz: speeds: 2794, 2793, 2660, 2527, 2394, 2261, 2128, 1995, 1862, 1729, 1596, 1463, 1330, 1197 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core DMI" rev 0x11
ppb0 at pci0 dev 3 function 0 "Intel Core PCIE" rev 0x11
pci1 at ppb0 bus 1
radeondrm0 at pci1 dev 0 function 0 "ATI Mobility Radeon HD 4850" rev 0x00
drm0 at radeondrm0
radeondrm0: msi
azalia0 at pci1 dev 0 function 1 "ATI Radeon HD 48xx HD Audio" rev 0x00: msi
azalia0: no supported codecs
"Intel Core Management" rev 0x11 at pci0 dev 8 function 0 not configured
"Intel Core Scratch" rev 0x11 at pci0 dev 8 function 1 not configured
"Intel Core Control" rev 0x11 at pci0 dev 8 function 2 not configured
"Intel Core Misc" rev 0x11 at pci0 dev 8 function 3 not configured
"Intel Core QPI Link" rev 0x11 at pci0 dev 16 function 0 not configured
"Intel Core QPI Routing" rev 0x11 at pci0 dev 16 function 1 not configured
uhci0 at pci0 dev 26 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 21
ehci0 at pci0 dev 26 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 16
usb0 at ehci0: USB revision 2.0
uhub0 at usb0 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
azalia1 at pci0 dev 27 function 0 "Intel 3400 HD Audio" rev 0x06: msi
azalia1: codecs: Cirrus Logic CS4206
audio0 at azalia1
ppb1 at pci0 dev 28 function 0 "Intel 3400 PCIE" rev 0x06: msi
pci2 at ppb1 bus 2
bge0 at pci2 dev 0 function 0 "Broadcom BCM5764" rev 0x10, BCM5784 A1 (0x5784100): msi, address d4:9a:20:d0:73:b5
brgphy0 at bge0 phy 1: BCM5784 10/100/1000baseT PHY, rev. 4
ppb2 at pci0 dev 28 function 1 "Intel 3400 PCIE" rev 0x06: msi
pci3 at ppb2 bus 3
athn0 at pci3 dev 0 function 0 "Atheros AR9281" rev 0x01: apic 2 int 17
athn0: AR9280 rev 2 (2T2R), ROM rev 22, address d4:9a:20:55:97:d8
ppb3 at pci0 dev 28 function 2 "Intel 3400 PCIE" rev 0x06: msi
pci4 at ppb3 bus 4
ppb4 at pci4 dev 0 function 0 "TI XIO2221 PCIE-PCI" rev 0x01
pci5 at ppb4 bus 5
"TI XIO2221 FireWire" rev 0x01 at pci5 dev 0 function 0 not configured
ppb5 at pci0 dev 28 function 3 "Intel 3400 PCIE" rev 0x06: msi
pci6 at ppb5 bus 6
ppb6 at pci0 dev 28 function 4 "Intel 3400 PCIE" rev 0x06: msi
pci7 at ppb6 bus 7
uhci1 at pci0 dev 29 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 19
ehci1 at pci0 dev 29 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 23
usb1 at ehci1: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
ppb7 at pci0 dev 30 function 0 "Intel 82801BA Hub-to-PCI" rev 0xa6
pci8 at ppb7 bus 8
pcib0 at pci0 dev 31 function 0 "Intel P55 LPC" rev 0x06
ahci0 at pci0 dev 31 function 2 "Intel 3400 AHCI" rev 0x06: msi, AHCI 1.3
ahci0: port 0: 3.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, Crucial_CT256M55, MU01> naa.500a07510c30ee66
sd0: 244198MB, 512 bytes/sector, 500118192 sectors, thin
cd0 at scsibus1 targ 1 lun 0: <OPTIARC, DVD RW AD-5680H, 3AHB> removable
ichiic0 at pci0 dev 31 function 3 "Intel 3400 SMBus" rev 0x06: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
spdmem1 at iic0 addr 0x52: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
itherm0 at pci0 dev 31 function 6 "Intel 3400 Thermal" rev 0x06
usb2 at uhci0: USB revision 1.0
uhub2 at usb2 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
usb3 at uhci1: USB revision 1.0
uhub3 at usb3 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
isa0 at pcib0
isadma0 at isa0
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
pci9 at mainbus0 bus 255
pchb1 at pci9 dev 0 function 0 vendor "Intel", unknown product 0x2c51 rev 0x04
pchb2 at pci9 dev 0 function 1 vendor "Intel", unknown product 0x2c81 rev 0x04
pchb3 at pci9 dev 2 function 0 vendor "Intel", unknown product 0x2c90 rev 0x04
pchb4 at pci9 dev 2 function 1 vendor "Intel", unknown product 0x2c91 rev 0x04
pchb5 at pci9 dev 3 function 0 vendor "Intel", unknown product 0x2c98 rev 0x04
pchb6 at pci9 dev 3 function 1 vendor "Intel", unknown product 0x2c99 rev 0x04
pchb7 at pci9 dev 3 function 4 vendor "Intel", unknown product 0x2c9c rev 0x04
pchb8 at pci9 dev 4 function 0 vendor "Intel", unknown product 0x2ca0 rev 0x04
pchb9 at pci9 dev 4 function 1 vendor "Intel", unknown product 0x2ca1 rev 0x04
pchb10 at pci9 dev 4 function 2 vendor "Intel", unknown product 0x2ca2 rev 0x04
pchb11 at pci9 dev 4 function 3 vendor "Intel", unknown product 0x2ca3 rev 0x04
pchb12 at pci9 dev 5 function 0 vendor "Intel", unknown product 0x2ca8 rev 0x04
pchb13 at pci9 dev 5 function 1 vendor "Intel", unknown product 0x2ca9 rev 0x04
pchb14 at pci9 dev 5 function 2 vendor "Intel", unknown product 0x2caa rev 0x04
pchb15 at pci9 dev 5 function 3 vendor "Intel", unknown product 0x2cab rev 0x04
vmm0 at mainbus0: VMX/EPT
efifb at mainbus0 not configured
uhub4 at uhub0 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uhub5 at uhub4 port 1 configuration 1 interface 0 "Apple Inc. BRCM2046 Hub" rev 2.00/1.00 addr 3
ugen0 at uhub5 port 1 "Apple Inc. Bluetooth USB Host Controller" rev 2.00/2.08 addr 4
uhidev0 at uhub5 port 2 configuration 1 interface 0 "Apple Computer product 0x820a" rev 2.00/1.00 addr 5
uhidev0: iclass 3/1, 1 report id
ukbd0 at uhidev0 reportid 1: 8 variable keys, 6 key codes
wskbd0 at ukbd0: console keyboard
uhidev1 at uhub5 port 3 configuration 1 interface 0 "Apple Computer product 0x820b" rev 2.00/1.00 addr 6
uhidev1: iclass 3/1, 2 report ids
ums0 at uhidev1 reportid 2: 3 buttons
wsmouse0 at ums0 mux 0
umass0 at uhub4 port 2 configuration 1 interface 0 "Apple Card Reader" rev 2.00/98.33 addr 7
umass0: using SCSI over Bulk-Only
scsibus2 at umass0: 2 targets, initiator 0
sd1 at scsibus2 targ 1 lun 0: <APPLE, SD Card Reader, 1.00> removable serial.05ac8403000000009833
uhidev2 at uhub4 port 4 configuration 1 interface 0 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 8
uhidev2: iclass 3/1
ukbd1 at uhidev2: 8 variable keys, 6 key codes
wskbd1 at ukbd1 mux 1
uhidev3 at uhub4 port 4 configuration 1 interface 1 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 8
uhidev3: iclass 3/0, 1 report id
uhid0 at uhidev3 reportid 1: input=7, output=0, feature=0
uhub6 at uhub1 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uvideo0 at uhub6 port 1 configuration 1 interface 0 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
video0 at uvideo0
ugen1 at uhub6 port 1 configuration 1 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
uhidev4 at uhub6 port 2 configuration 1 interface 0 "Apple Computer, Inc. IR Receiver" rev 2.00/0.16 addr 4
uhidev4: iclass 3/0, 38 report ids
uhid1 at uhidev4 reportid 36: input=4, output=0, feature=0
uhid2 at uhidev4 reportid 37: input=4, output=0, feature=0
uhid3 at uhidev4 reportid 38: input=4, output=0, feature=0
uhidev5 at uhub6 port 4 configuration 1 interface 0 "Logitech USB-PS/2 Optical Mouse" rev 2.00/21.00 addr 5
uhidev5: iclass 3/1
ums1 at uhidev5: 8 buttons, Z dir
wsmouse1 at ums1 mux 0
vscsi0 at root
scsibus3 at vscsi0: 256 targets
softraid0 at root
scsibus4 at softraid0: 256 targets
root on sd0a (218c297f8386644c.a) swap on sd0b dump on sd0b
initializing kernel modesetting (RV770 0x1002:0x944A 0x106B:0x00B5 0x00).
radeondrm0: 2560x1440, 32bpp
wsdisplay0 at radeondrm0 mux 1: console (std, vt100 emulation), using wskbd0
wskbd1: connecting to wsdisplay0
wsdisplay0: screen 1-5 added (std, vt100 emulation)

2021

OpenBSD 6.9

dmesg
OpenBSD 6.9 (GENERIC.MP) #3: Mon Jun  7 08:21:26 MDT 2021
    root@syspatch-69-amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
real mem = 17152987136 (16358MB)
avail mem = 16617766912 (15847MB)
random: good seed from bootblocks
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.4 @ 0xbf65d000 (80 entries)
bios0: vendor Apple Inc. version "63.0.0.0.0" date 06/14/2019
bios0: Apple Inc. iMac11,1
acpi0 at bios0: ACPI 4.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP ASF! HPET APIC APIC MCFG SBST ECDT SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P2(S4) GFX0(S4) EC__(S3) HDEF(S4) RP01(S4) GIGE(S5) RP02(S4) ARPT(S5) RP03(S4) RP04(S4) GLAN(S4) EHC1(S3) EHC2(S3)
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.39 MHz, 06-1e-05
cpu0: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 8 var ranges, 88 fixed ranges
cpu0: apic clock running at 133MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.02 MHz, 06-1e-05
cpu1: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.02 MHz, 06-1e-05
cpu2: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.02 MHz, 06-1e-05
cpu3: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
cpu4 at mainbus0: apid 4 (application processor)
cpu4: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.02 MHz, 06-1e-05
cpu4: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu4: 256KB 64b/line 8-way L2 cache
cpu4: smt 0, core 2, package 0
cpu5 at mainbus0: apid 5 (application processor)
cpu5: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.02 MHz, 06-1e-05
cpu5: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu5: 256KB 64b/line 8-way L2 cache
cpu5: smt 1, core 2, package 0
cpu6 at mainbus0: apid 6 (application processor)
cpu6: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.02 MHz, 06-1e-05
cpu6: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu6: 256KB 64b/line 8-way L2 cache
cpu6: smt 0, core 3, package 0
cpu7 at mainbus0: apid 7 (application processor)
cpu7: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.02 MHz, 06-1e-05
cpu7: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu7: 256KB 64b/line 8-way L2 cache
cpu7: smt 1, core 3, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 24 pins, remapped
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiec0 at acpi0
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus 1 (P0P2)
acpiprt2 at acpi0: bus 2 (RP01)
acpiprt3 at acpi0: bus 3 (RP02)
acpiprt4 at acpi0: bus 4 (RP03)
acpiprt5 at acpi0: bus 6 (RP04)
acpipci0 at acpi0 PCI0: 0x00000004 0x00000011 0x00000001
acpicmos0 at acpi0
asmc0 at acpi0: SMC_ (smc-piketon) addr 0x300/0x20: rev 1.54f554, 297 keys
"APP000C" at acpi0 not configured
acpibtn0 at acpi0: PWRB
abl0 at acpi0: PNLF (backlight)
acpibtn1 at acpi0: SLPB
acpipci1 at acpi0 CPBG
acpicpu0 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu1 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu2 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu3 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu4 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu5 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu6 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu7 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
cpu0: using IvyBridge MDS workaround
cpu0: Enhanced SpeedStep 2926 MHz: speeds: 2794, 2793, 2660, 2527, 2394, 2261, 2128, 1995, 1862, 1729, 1596, 1463, 1330, 1197 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core DMI" rev 0x11
ppb0 at pci0 dev 3 function 0 "Intel Core PCIE" rev 0x11
pci1 at ppb0 bus 1
radeondrm0 at pci1 dev 0 function 0 "ATI Mobility Radeon HD 4850" rev 0x00
drm0 at radeondrm0
radeondrm0: msi
azalia0 at pci1 dev 0 function 1 "ATI Radeon HD 48xx HD Audio" rev 0x00: msi
azalia0: no supported codecs
"Intel Core Management" rev 0x11 at pci0 dev 8 function 0 not configured
"Intel Core Scratch" rev 0x11 at pci0 dev 8 function 1 not configured
"Intel Core Control" rev 0x11 at pci0 dev 8 function 2 not configured
"Intel Core Misc" rev 0x11 at pci0 dev 8 function 3 not configured
"Intel Core QPI Link" rev 0x11 at pci0 dev 16 function 0 not configured
"Intel Core QPI Routing" rev 0x11 at pci0 dev 16 function 1 not configured
uhci0 at pci0 dev 26 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 21
ehci0 at pci0 dev 26 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 16
usb0 at ehci0: USB revision 2.0
uhub0 at usb0 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
azalia1 at pci0 dev 27 function 0 "Intel 3400 HD Audio" rev 0x06: msi
azalia1: codecs: Cirrus Logic CS4206
audio0 at azalia1
ppb1 at pci0 dev 28 function 0 "Intel 3400 PCIE" rev 0x06: msi
pci2 at ppb1 bus 2
bge0 at pci2 dev 0 function 0 "Broadcom BCM5764" rev 0x10, BCM5784 A1 (0x5784100): msi, address d4:9a:20:d0:73:b5
brgphy0 at bge0 phy 1: BCM5784 10/100/1000baseT PHY, rev. 4
ppb2 at pci0 dev 28 function 1 "Intel 3400 PCIE" rev 0x06: msi
pci3 at ppb2 bus 3
athn0 at pci3 dev 0 function 0 "Atheros AR9281" rev 0x01: apic 2 int 17
athn0: AR9280 rev 2 (2T2R), ROM rev 22, address d4:9a:20:55:97:d8
ppb3 at pci0 dev 28 function 2 "Intel 3400 PCIE" rev 0x06: msi
pci4 at ppb3 bus 4
ppb4 at pci4 dev 0 function 0 "TI XIO2221 PCIE-PCI" rev 0x01
pci5 at ppb4 bus 5
"TI XIO2221 FireWire" rev 0x01 at pci5 dev 0 function 0 not configured
ppb5 at pci0 dev 28 function 3 "Intel 3400 PCIE" rev 0x06: msi
pci6 at ppb5 bus 6
ppb6 at pci0 dev 28 function 4 "Intel 3400 PCIE" rev 0x06: msi
pci7 at ppb6 bus 7
uhci1 at pci0 dev 29 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 19
ehci1 at pci0 dev 29 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 23
usb1 at ehci1: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
ppb7 at pci0 dev 30 function 0 "Intel 82801BA Hub-to-PCI" rev 0xa6
pci8 at ppb7 bus 8
pcib0 at pci0 dev 31 function 0 "Intel P55 LPC" rev 0x06
ahci0 at pci0 dev 31 function 2 "Intel 3400 AHCI" rev 0x06: msi, AHCI 1.3
ahci0: port 0: 3.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, Crucial_CT256M55, MU01> naa.500a07510c30ee66
sd0: 244198MB, 512 bytes/sector, 500118192 sectors, thin
cd0 at scsibus1 targ 1 lun 0: <OPTIARC, DVD RW AD-5680H, 3AHB> removable
ichiic0 at pci0 dev 31 function 3 "Intel 3400 SMBus" rev 0x06: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
spdmem1 at iic0 addr 0x52: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
itherm0 at pci0 dev 31 function 6 "Intel 3400 Thermal" rev 0x06
usb2 at uhci0: USB revision 1.0
uhub2 at usb2 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
usb3 at uhci1: USB revision 1.0
uhub3 at usb3 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
isa0 at pcib0
isadma0 at isa0
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
pci9 at mainbus0 bus 255
pchb1 at pci9 dev 0 function 0 vendor "Intel", unknown product 0x2c51 rev 0x04
pchb2 at pci9 dev 0 function 1 vendor "Intel", unknown product 0x2c81 rev 0x04
pchb3 at pci9 dev 2 function 0 vendor "Intel", unknown product 0x2c90 rev 0x04
pchb4 at pci9 dev 2 function 1 vendor "Intel", unknown product 0x2c91 rev 0x04
pchb5 at pci9 dev 3 function 0 vendor "Intel", unknown product 0x2c98 rev 0x04
pchb6 at pci9 dev 3 function 1 vendor "Intel", unknown product 0x2c99 rev 0x04
pchb7 at pci9 dev 3 function 4 vendor "Intel", unknown product 0x2c9c rev 0x04
pchb8 at pci9 dev 4 function 0 vendor "Intel", unknown product 0x2ca0 rev 0x04
pchb9 at pci9 dev 4 function 1 vendor "Intel", unknown product 0x2ca1 rev 0x04
pchb10 at pci9 dev 4 function 2 vendor "Intel", unknown product 0x2ca2 rev 0x04
pchb11 at pci9 dev 4 function 3 vendor "Intel", unknown product 0x2ca3 rev 0x04
pchb12 at pci9 dev 5 function 0 vendor "Intel", unknown product 0x2ca8 rev 0x04
pchb13 at pci9 dev 5 function 1 vendor "Intel", unknown product 0x2ca9 rev 0x04
pchb14 at pci9 dev 5 function 2 vendor "Intel", unknown product 0x2caa rev 0x04
pchb15 at pci9 dev 5 function 3 vendor "Intel", unknown product 0x2cab rev 0x04
vmm0 at mainbus0: VMX/EPT
efifb at mainbus0 not configured
uhub4 at uhub0 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uhub5 at uhub4 port 1 configuration 1 interface 0 "Apple Inc. BRCM2046 Hub" rev 2.00/1.00 addr 3
ugen0 at uhub5 port 1 "Apple Inc. Bluetooth USB Host Controller" rev 2.00/2.08 addr 4
uhidev0 at uhub5 port 2 configuration 1 interface 0 "Apple Computer product 0x820a" rev 2.00/1.00 addr 5
uhidev0: iclass 3/1, 1 report id
ukbd0 at uhidev0 reportid 1: 8 variable keys, 6 key codes
wskbd0 at ukbd0: console keyboard
uhidev1 at uhub5 port 3 configuration 1 interface 0 "Apple Computer product 0x820b" rev 2.00/1.00 addr 6
uhidev1: iclass 3/1, 2 report ids
ums0 at uhidev1 reportid 2: 3 buttons
wsmouse0 at ums0 mux 0
umass0 at uhub4 port 2 configuration 1 interface 0 "Apple Card Reader" rev 2.00/98.33 addr 7
umass0: using SCSI over Bulk-Only
scsibus2 at umass0: 2 targets, initiator 0
sd1 at scsibus2 targ 1 lun 0: <APPLE, SD Card Reader, 1.00> removable serial.05ac8403000000009833
uhidev2 at uhub4 port 4 configuration 1 interface 0 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 8
uhidev2: iclass 3/1
ukbd1 at uhidev2: 8 variable keys, 6 key codes
wskbd1 at ukbd1 mux 1
uhidev3 at uhub4 port 4 configuration 1 interface 1 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 8
uhidev3: iclass 3/0, 1 report id
uhid0 at uhidev3 reportid 1: input=7, output=0, feature=0
uhub6 at uhub1 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uvideo0 at uhub6 port 1 configuration 1 interface 0 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
video0 at uvideo0
ugen1 at uhub6 port 1 configuration 1 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
uhidev4 at uhub6 port 2 configuration 1 interface 0 "Apple Computer, Inc. IR Receiver" rev 2.00/0.16 addr 4
uhidev4: iclass 3/0, 38 report ids
uhid1 at uhidev4 reportid 36: input=4, output=0, feature=0
uhid2 at uhidev4 reportid 37: input=4, output=0, feature=0
uhid3 at uhidev4 reportid 38: input=4, output=0, feature=0
uftdi0 at uhub6 port 3 configuration 1 interface 0 "FTDI FT232R USB UART" rev 2.00/6.00 addr 5
ucom0 at uftdi0 portno 1
uhidev5 at uhub6 port 4 configuration 1 interface 0 "Logitech USB-PS/2 Optical Mouse" rev 2.00/21.00 addr 6
uhidev5: iclass 3/1
ums1 at uhidev5: 8 buttons, Z dir
wsmouse1 at ums1 mux 0
vscsi0 at root
scsibus3 at vscsi0: 256 targets
softraid0 at root
scsibus4 at softraid0: 256 targets
root on sd0a (218c297f8386644c.a) swap on sd0b dump on sd0b
radeondrm0: RV770
radeondrm0: 2560x1440, 32bpp
wsdisplay0 at radeondrm0 mux 1: console (std, vt100 emulation), using wskbd0
wskbd1: connecting to wsdisplay0
wsdisplay0: screen 1-5 added (std, vt100 emulation)

Repair GPU (2)

There were artefacts on the screen but the computer still worked. The video card was baked in the oven for a few minutes, and it worked afterwards.

OpenBSD 7.0

dmesg
OpenBSD 7.0 (GENERIC.MP) #3: Thu Oct 14 10:54:10 PDT 2021
    milz@imac.0x30.net:/sys/arch/amd64/compile/GENERIC.MP
real mem = 17152987136 (16358MB)
avail mem = 16617115648 (15847MB)
random: good seed from bootblocks
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.4 @ 0xbf65d000 (80 entries)
bios0: vendor Apple Inc. version "63.0.0.0.0" date 06/14/2019
bios0: Apple Inc. iMac11,1
acpi0 at bios0: ACPI 4.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP ASF! HPET APIC APIC MCFG SBST ECDT SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P2(S4) GFX0(S4) EC__(S3) HDEF(S4) RP01(S4) GIGE(S5) RP02(S4) ARPT(S5) RP03(S4) RP04(S4) GLAN(S4) EHC1(S3) EHC2(S3)
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.40 MHz, 06-1e-05
cpu0: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 8 var ranges, 88 fixed ranges
cpu0: apic clock running at 132MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu1: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu2: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu3: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
cpu4 at mainbus0: apid 4 (application processor)
cpu4: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu4: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu4: 256KB 64b/line 8-way L2 cache
cpu4: smt 0, core 2, package 0
cpu5 at mainbus0: apid 5 (application processor)
cpu5: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu5: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu5: 256KB 64b/line 8-way L2 cache
cpu5: smt 1, core 2, package 0
cpu6 at mainbus0: apid 6 (application processor)
cpu6: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu6: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu6: 256KB 64b/line 8-way L2 cache
cpu6: smt 0, core 3, package 0
cpu7 at mainbus0: apid 7 (application processor)
cpu7: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.00 MHz, 06-1e-05
cpu7: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu7: 256KB 64b/line 8-way L2 cache
cpu7: smt 1, core 3, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 24 pins, remapped
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiec0 at acpi0
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus 1 (P0P2)
acpiprt2 at acpi0: bus 2 (RP01)
acpiprt3 at acpi0: bus 3 (RP02)
acpiprt4 at acpi0: bus 4 (RP03)
acpiprt5 at acpi0: bus 6 (RP04)
acpipci0 at acpi0 PCI0: 0x00000004 0x00000011 0x00000001
acpicmos0 at acpi0
asmc0 at acpi0: SMC_ (smc-piketon) addr 0x300/0x20: rev 1.54f554, 297 keys
"APP000C" at acpi0 not configured
acpibtn0 at acpi0: PWRB
abl0 at acpi0: PNLF (backlight)
acpibtn1 at acpi0: SLPB
acpipci1 at acpi0 CPBG
acpicpu0 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu1 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu2 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu3 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu4 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu5 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu6 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu7 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
cpu0: using IvyBridge MDS workaround
cpu0: Enhanced SpeedStep 2926 MHz: speeds: 2794, 2793, 2660, 2527, 2394, 2261, 2128, 1995, 1862, 1729, 1596, 1463, 1330, 1197 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core DMI" rev 0x11
ppb0 at pci0 dev 3 function 0 "Intel Core PCIE" rev 0x11
pci1 at ppb0 bus 1
radeondrm0 at pci1 dev 0 function 0 "ATI Mobility Radeon HD 4850" rev 0x00
drm0 at radeondrm0
radeondrm0: msi
azalia0 at pci1 dev 0 function 1 "ATI Radeon HD 48xx HD Audio" rev 0x00: msi
azalia0: no supported codecs
"Intel Core Management" rev 0x11 at pci0 dev 8 function 0 not configured
"Intel Core Scratch" rev 0x11 at pci0 dev 8 function 1 not configured
"Intel Core Control" rev 0x11 at pci0 dev 8 function 2 not configured
"Intel Core Misc" rev 0x11 at pci0 dev 8 function 3 not configured
"Intel Core QPI Link" rev 0x11 at pci0 dev 16 function 0 not configured
"Intel Core QPI Routing" rev 0x11 at pci0 dev 16 function 1 not configured
uhci0 at pci0 dev 26 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 21
ehci0 at pci0 dev 26 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 16
usb0 at ehci0: USB revision 2.0
uhub0 at usb0 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
azalia1 at pci0 dev 27 function 0 "Intel 3400 HD Audio" rev 0x06: msi
azalia1: codecs: Cirrus Logic CS4206
audio0 at azalia1
ppb1 at pci0 dev 28 function 0 "Intel 3400 PCIE" rev 0x06: msi
pci2 at ppb1 bus 2
bge0 at pci2 dev 0 function 0 "Broadcom BCM5764" rev 0x10, BCM5784 A1 (0x5784100): msi, address d4:9a:20:d0:73:b5
brgphy0 at bge0 phy 1: BCM5784 10/100/1000baseT PHY, rev. 4
ppb2 at pci0 dev 28 function 1 "Intel 3400 PCIE" rev 0x06: msi
pci3 at ppb2 bus 3
athn0 at pci3 dev 0 function 0 "Atheros AR9281" rev 0x01: apic 2 int 17
athn0: AR9280 rev 2 (2T2R), ROM rev 22, address d4:9a:20:55:97:d8
ppb3 at pci0 dev 28 function 2 "Intel 3400 PCIE" rev 0x06: msi
pci4 at ppb3 bus 4
ppb4 at pci4 dev 0 function 0 "TI XIO2221 PCIE-PCI" rev 0x01
pci5 at ppb4 bus 5
"TI XIO2221 FireWire" rev 0x01 at pci5 dev 0 function 0 not configured
ppb5 at pci0 dev 28 function 3 "Intel 3400 PCIE" rev 0x06: msi
pci6 at ppb5 bus 6
ppb6 at pci0 dev 28 function 4 "Intel 3400 PCIE" rev 0x06: msi
pci7 at ppb6 bus 7
uhci1 at pci0 dev 29 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 19
ehci1 at pci0 dev 29 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 23
usb1 at ehci1: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
ppb7 at pci0 dev 30 function 0 "Intel 82801BA Hub-to-PCI" rev 0xa6
pci8 at ppb7 bus 8
pcib0 at pci0 dev 31 function 0 "Intel P55 LPC" rev 0x06
ahci0 at pci0 dev 31 function 2 "Intel 3400 AHCI" rev 0x06: msi, AHCI 1.3
ahci0: port 0: 3.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, Crucial_CT256M55, MU01> naa.500a07510c30ee66
sd0: 244198MB, 512 bytes/sector, 500118192 sectors, thin
cd0 at scsibus1 targ 1 lun 0: <OPTIARC, DVD RW AD-5680H, 3AHB> removable
ichiic0 at pci0 dev 31 function 3 "Intel 3400 SMBus" rev 0x06: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
spdmem1 at iic0 addr 0x52: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
itherm0 at pci0 dev 31 function 6 "Intel 3400 Thermal" rev 0x06
usb2 at uhci0: USB revision 1.0
uhub2 at usb2 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
usb3 at uhci1: USB revision 1.0
uhub3 at usb3 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
isa0 at pcib0
isadma0 at isa0
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
pci9 at mainbus0 bus 255
pchb1 at pci9 dev 0 function 0 vendor "Intel", unknown product 0x2c51 rev 0x04
pchb2 at pci9 dev 0 function 1 vendor "Intel", unknown product 0x2c81 rev 0x04
pchb3 at pci9 dev 2 function 0 vendor "Intel", unknown product 0x2c90 rev 0x04
pchb4 at pci9 dev 2 function 1 vendor "Intel", unknown product 0x2c91 rev 0x04
pchb5 at pci9 dev 3 function 0 vendor "Intel", unknown product 0x2c98 rev 0x04
pchb6 at pci9 dev 3 function 1 vendor "Intel", unknown product 0x2c99 rev 0x04
pchb7 at pci9 dev 3 function 4 vendor "Intel", unknown product 0x2c9c rev 0x04
pchb8 at pci9 dev 4 function 0 vendor "Intel", unknown product 0x2ca0 rev 0x04
pchb9 at pci9 dev 4 function 1 vendor "Intel", unknown product 0x2ca1 rev 0x04
pchb10 at pci9 dev 4 function 2 vendor "Intel", unknown product 0x2ca2 rev 0x04
pchb11 at pci9 dev 4 function 3 vendor "Intel", unknown product 0x2ca3 rev 0x04
pchb12 at pci9 dev 5 function 0 vendor "Intel", unknown product 0x2ca8 rev 0x04
pchb13 at pci9 dev 5 function 1 vendor "Intel", unknown product 0x2ca9 rev 0x04
pchb14 at pci9 dev 5 function 2 vendor "Intel", unknown product 0x2caa rev 0x04
pchb15 at pci9 dev 5 function 3 vendor "Intel", unknown product 0x2cab rev 0x04
vmm0 at mainbus0: VMX/EPT
efifb at mainbus0 not configured
dt: 445 probes
uhub4 at uhub0 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uhub5 at uhub4 port 1 configuration 1 interface 0 "Apple Inc. BRCM2046 Hub" rev 2.00/1.00 addr 3
ugen0 at uhub5 port 1 "Apple Inc. Bluetooth USB Host Controller" rev 2.00/2.08 addr 4
uhidev0 at uhub5 port 2 configuration 1 interface 0 "Apple Computer product 0x820a" rev 2.00/1.00 addr 5
uhidev0: iclass 3/1, 1 report id
ukbd0 at uhidev0 reportid 1: 8 variable keys, 6 key codes
wskbd0 at ukbd0: console keyboard
uhidev1 at uhub5 port 3 configuration 1 interface 0 "Apple Computer product 0x820b" rev 2.00/1.00 addr 6
uhidev1: iclass 3/1, 2 report ids
ums0 at uhidev1 reportid 2: 3 buttons
wsmouse0 at ums0 mux 0
umass0 at uhub4 port 2 configuration 1 interface 0 "Apple Card Reader" rev 2.00/98.33 addr 7
umass0: using SCSI over Bulk-Only
scsibus2 at umass0: 2 targets, initiator 0
sd1 at scsibus2 targ 1 lun 0: <APPLE, SD Card Reader, 1.00> removable serial.05ac8403000000009833
uhidev2 at uhub4 port 4 configuration 1 interface 0 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 8
uhidev2: iclass 3/1
ukbd1 at uhidev2: 8 variable keys, 6 key codes
wskbd1 at ukbd1 mux 1
uhidev3 at uhub4 port 4 configuration 1 interface 1 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 8
uhidev3: iclass 3/0, 1 report id
ucc0 at uhidev3 reportid 1: 1024 usages, 18 keys, array
wskbd2 at ucc0 mux 1
uhub6 at uhub1 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uvideo0 at uhub6 port 1 configuration 1 interface 0 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
video0 at uvideo0
ugen1 at uhub6 port 1 configuration 1 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
uhidev4 at uhub6 port 2 configuration 1 interface 0 "Apple Computer, Inc. IR Receiver" rev 2.00/0.16 addr 4
uhidev4: iclass 3/0, 38 report ids
uhid0 at uhidev4 reportid 36: input=4, output=0, feature=0
uhid1 at uhidev4 reportid 37: input=4, output=0, feature=0
uhid2 at uhidev4 reportid 38: input=4, output=0, feature=0
uftdi0 at uhub6 port 3 configuration 1 interface 0 "FTDI FT232R USB UART" rev 2.00/6.00 addr 5
ucom0 at uftdi0 portno 1
uhidev5 at uhub6 port 4 configuration 1 interface 0 "Logitech USB-PS/2 Optical Mouse" rev 2.00/21.00 addr 6
uhidev5: iclass 3/1
ums1 at uhidev5: 8 buttons, Z dir
wsmouse1 at ums1 mux 0
vscsi0 at root
scsibus3 at vscsi0: 256 targets
softraid0 at root
scsibus4 at softraid0: 256 targets
root on sd0a (218c297f8386644c.a) swap on sd0b dump on sd0b
WARNING: clock gained 2 days
WARNING: CHECK AND RESET THE DATE!
radeondrm0: RV770
radeondrm0: 2560x1440, 32bpp
wsdisplay0 at radeondrm0 mux 1: console (std, vt100 emulation), using wskbd0
wskbd1: connecting to wsdisplay0
wskbd2: connecting to wsdisplay0
wsdisplay0: screen 1-5 added (std, vt100 emulation)

2022

OpenBSD 7.1

dmesg
OpenBSD 7.1-stable (GENERIC.MP) #5: Fri Apr 22 17:39:31 PDT 2022
    milz@imac.0x30.net:/sys/arch/amd64/compile/GENERIC.MP
real mem = 17152987136 (16358MB)
avail mem = 16615841792 (15846MB)
random: good seed from bootblocks
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.4 @ 0xbf65d000 (80 entries)
bios0: vendor Apple Inc. version "63.0.0.0.0" date 06/14/2019
bios0: Apple Inc. iMac11,1
acpi0 at bios0: ACPI 4.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP ASF! HPET APIC APIC MCFG SBST ECDT SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P2(S4) GFX0(S4) EC__(S3) HDEF(S4) RP01(S4) GIGE(S5) RP02(S4) ARPT(S5) RP03(S4) RP04(S4) GLAN(S4) EHC1(S3) EHC2(S3)
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.46 MHz, 06-1e-05
cpu0: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 8 var ranges, 88 fixed ranges
cpu0: apic clock running at 133MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu1: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu2: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu3: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
cpu4 at mainbus0: apid 4 (application processor)
cpu4: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu4: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu4: 256KB 64b/line 8-way L2 cache
cpu4: smt 0, core 2, package 0
cpu5 at mainbus0: apid 5 (application processor)
cpu5: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu5: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu5: 256KB 64b/line 8-way L2 cache
cpu5: smt 1, core 2, package 0
cpu6 at mainbus0: apid 6 (application processor)
cpu6: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu6: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu6: 256KB 64b/line 8-way L2 cache
cpu6: smt 0, core 3, package 0
cpu7 at mainbus0: apid 7 (application processor)
cpu7: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz, 2926.01 MHz, 06-1e-05
cpu7: FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,DTES64,MWAIT,DS-CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,POPCNT,NXE,RDTSCP,LONG,LAHF,PERF,ITSC,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,MELTDOWN
cpu7: 256KB 64b/line 8-way L2 cache
cpu7: smt 1, core 3, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 24 pins, remapped
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiec0 at acpi0
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus 1 (P0P2)
acpiprt2 at acpi0: bus 2 (RP01)
acpiprt3 at acpi0: bus 3 (RP02)
acpiprt4 at acpi0: bus 4 (RP03)
acpiprt5 at acpi0: bus 6 (RP04)
acpipci0 at acpi0 PCI0: 0x00000004 0x00000011 0x00000001
acpicmos0 at acpi0
asmc0 at acpi0: SMC_ (smc-piketon) addr 0x300/0x20: rev 1.54f554, 297 keys
"APP000C" at acpi0 not configured
acpibtn0 at acpi0: PWRB
abl0 at acpi0: PNLF (backlight)
acpibtn1 at acpi0: SLPB
acpipci1 at acpi0 CPBG
acpicpu0 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu1 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu2 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu3 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu4 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu5 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu6 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
acpicpu7 at acpi0: !C2(350@245 mwait.3@0x20), C1(1000@3 mwait.1), PSS
cpu0: using IvyBridge MDS workaround
cpu0: Enhanced SpeedStep 2926 MHz: speeds: 2794, 2793, 2660, 2527, 2394, 2261, 2128, 1995, 1862, 1729, 1596, 1463, 1330, 1197 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core DMI" rev 0x11
ppb0 at pci0 dev 3 function 0 "Intel Core PCIE" rev 0x11
pci1 at ppb0 bus 1
radeondrm0 at pci1 dev 0 function 0 "ATI Mobility Radeon HD 4850" rev 0x00
drm0 at radeondrm0
radeondrm0: msi
azalia0 at pci1 dev 0 function 1 "ATI Radeon HD 48xx HD Audio" rev 0x00: msi
azalia0: no supported codecs
"Intel Core Management" rev 0x11 at pci0 dev 8 function 0 not configured
"Intel Core Scratch" rev 0x11 at pci0 dev 8 function 1 not configured
"Intel Core Control" rev 0x11 at pci0 dev 8 function 2 not configured
"Intel Core Misc" rev 0x11 at pci0 dev 8 function 3 not configured
"Intel Core QPI Link" rev 0x11 at pci0 dev 16 function 0 not configured
"Intel Core QPI Routing" rev 0x11 at pci0 dev 16 function 1 not configured
uhci0 at pci0 dev 26 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 21
ehci0 at pci0 dev 26 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 16
usb0 at ehci0: USB revision 2.0
uhub0 at usb0 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
azalia1 at pci0 dev 27 function 0 "Intel 3400 HD Audio" rev 0x06: msi
azalia1: codecs: Cirrus Logic CS4206
audio0 at azalia1
ppb1 at pci0 dev 28 function 0 "Intel 3400 PCIE" rev 0x06: msi
pci2 at ppb1 bus 2
bge0 at pci2 dev 0 function 0 "Broadcom BCM5764" rev 0x10, BCM5784 A1 (0x5784100): msi, address d4:9a:20:d0:73:b5
brgphy0 at bge0 phy 1: BCM5784 10/100/1000baseT PHY, rev. 4
ppb2 at pci0 dev 28 function 1 "Intel 3400 PCIE" rev 0x06: msi
pci3 at ppb2 bus 3
athn0 at pci3 dev 0 function 0 "Atheros AR9281" rev 0x01: apic 2 int 17
athn0: AR9280 rev 2 (2T2R), ROM rev 22, address d4:9a:20:55:97:d8
ppb3 at pci0 dev 28 function 2 "Intel 3400 PCIE" rev 0x06: msi
pci4 at ppb3 bus 4
ppb4 at pci4 dev 0 function 0 "TI XIO2221 PCIE-PCI" rev 0x01
pci5 at ppb4 bus 5
"TI XIO2221 FireWire" rev 0x01 at pci5 dev 0 function 0 not configured
ppb5 at pci0 dev 28 function 3 "Intel 3400 PCIE" rev 0x06: msi
pci6 at ppb5 bus 6
ppb6 at pci0 dev 28 function 4 "Intel 3400 PCIE" rev 0x06: msi
pci7 at ppb6 bus 7
uhci1 at pci0 dev 29 function 0 "Intel 3400 USB" rev 0x06: apic 2 int 19
ehci1 at pci0 dev 29 function 7 "Intel 3400 USB" rev 0x06: apic 2 int 23
usb1 at ehci1: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00 addr 1
ppb7 at pci0 dev 30 function 0 "Intel 82801BA Hub-to-PCI" rev 0xa6
pci8 at ppb7 bus 8
pcib0 at pci0 dev 31 function 0 "Intel P55 LPC" rev 0x06
ahci0 at pci0 dev 31 function 2 "Intel 3400 AHCI" rev 0x06: msi, AHCI 1.3
ahci0: port 0: 3.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, Crucial_CT256M55, MU01> naa.500a07510c30ee66
sd0: 244198MB, 512 bytes/sector, 500118192 sectors, thin
cd0 at scsibus1 targ 1 lun 0: <OPTIARC, DVD RW AD-5680H, 3AHB> removable
ichiic0 at pci0 dev 31 function 3 "Intel 3400 SMBus" rev 0x06: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
spdmem1 at iic0 addr 0x52: 8GB DDR3 SDRAM PC3-10600 SO-DIMM
itherm0 at pci0 dev 31 function 6 "Intel 3400 Thermal" rev 0x06
usb2 at uhci0: USB revision 1.0
uhub2 at usb2 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
usb3 at uhci1: USB revision 1.0
uhub3 at usb3 configuration 1 interface 0 "Intel UHCI root hub" rev 1.00/1.00 addr 1
isa0 at pcib0
isadma0 at isa0
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
pci9 at mainbus0 bus 255
pchb1 at pci9 dev 0 function 0 vendor "Intel", unknown product 0x2c51 rev 0x04
pchb2 at pci9 dev 0 function 1 vendor "Intel", unknown product 0x2c81 rev 0x04
pchb3 at pci9 dev 2 function 0 vendor "Intel", unknown product 0x2c90 rev 0x04
pchb4 at pci9 dev 2 function 1 vendor "Intel", unknown product 0x2c91 rev 0x04
pchb5 at pci9 dev 3 function 0 vendor "Intel", unknown product 0x2c98 rev 0x04
pchb6 at pci9 dev 3 function 1 vendor "Intel", unknown product 0x2c99 rev 0x04
pchb7 at pci9 dev 3 function 4 vendor "Intel", unknown product 0x2c9c rev 0x04
pchb8 at pci9 dev 4 function 0 vendor "Intel", unknown product 0x2ca0 rev 0x04
pchb9 at pci9 dev 4 function 1 vendor "Intel", unknown product 0x2ca1 rev 0x04
pchb10 at pci9 dev 4 function 2 vendor "Intel", unknown product 0x2ca2 rev 0x04
pchb11 at pci9 dev 4 function 3 vendor "Intel", unknown product 0x2ca3 rev 0x04
pchb12 at pci9 dev 5 function 0 vendor "Intel", unknown product 0x2ca8 rev 0x04
pchb13 at pci9 dev 5 function 1 vendor "Intel", unknown product 0x2ca9 rev 0x04
pchb14 at pci9 dev 5 function 2 vendor "Intel", unknown product 0x2caa rev 0x04
pchb15 at pci9 dev 5 function 3 vendor "Intel", unknown product 0x2cab rev 0x04
vmm0 at mainbus0: VMX/EPT
efifb at mainbus0 not configured
uhub4 at uhub0 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uhub5 at uhub4 port 1 configuration 1 interface 0 "Apple Inc. BRCM2046 Hub" rev 2.00/1.00 addr 3
ugen0 at uhub5 port 1 "Apple Inc. Bluetooth USB Host Controller" rev 2.00/2.08 addr 4
uhidev0 at uhub5 port 2 configuration 1 interface 0 "Apple Computer product 0x820a" rev 2.00/1.00 addr 5
uhidev0: iclass 3/1, 1 report id
ukbd0 at uhidev0 reportid 1: 8 variable keys, 6 key codes
wskbd0 at ukbd0: console keyboard
uhidev1 at uhub5 port 3 configuration 1 interface 0 "Apple Computer product 0x820b" rev 2.00/1.00 addr 6
uhidev1: iclass 3/1, 2 report ids
ums0 at uhidev1 reportid 2: 3 buttons
wsmouse0 at ums0 mux 0
umass0 at uhub4 port 2 configuration 1 interface 0 "Apple Card Reader" rev 2.00/98.33 addr 7
umass0: using SCSI over Bulk-Only
scsibus2 at umass0: 2 targets, initiator 0
sd1 at scsibus2 targ 1 lun 0: <APPLE, SD Card Reader, 1.00> removable serial.05ac8403000000009833
uhidev2 at uhub4 port 4 configuration 1 interface 0 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 8
uhidev2: iclass 3/1
ukbd1 at uhidev2: 8 variable keys, 6 key codes
wskbd1 at ukbd1 mux 1
uhidev3 at uhub4 port 4 configuration 1 interface 1 "Microsoft Natural\M-. Ergonomic Keyboard 4000" rev 2.00/1.73 addr 8
uhidev3: iclass 3/0, 1 report id
ucc0 at uhidev3 reportid 1: 1024 usages, 18 keys, array
wskbd2 at ucc0 mux 1
uhub6 at uhub1 port 1 configuration 1 interface 0 "Standard Microsystems product 0x2514" rev 2.00/0.03 addr 2
uvideo0 at uhub6 port 1 configuration 1 interface 0 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
video0 at uvideo0
ugen1 at uhub6 port 1 configuration 1 "Apple Inc. Built-in iSight" rev 2.00/2.30 addr 3
uhidev4 at uhub6 port 2 configuration 1 interface 0 "Apple Computer, Inc. IR Receiver" rev 2.00/0.16 addr 4
uhidev4: iclass 3/0, 38 report ids
uhid0 at uhidev4 reportid 36: input=4, output=0, feature=0
uhid1 at uhidev4 reportid 37: input=4, output=0, feature=0
uhid2 at uhidev4 reportid 38: input=4, output=0, feature=0
uhidev5 at uhub6 port 4 configuration 1 interface 0 "Logitech USB-PS/2 Optical Mouse" rev 2.00/21.00 addr 5
uhidev5: iclass 3/1
ums1 at uhidev5: 8 buttons, Z dir
wsmouse1 at ums1 mux 0
vscsi0 at root
scsibus3 at vscsi0: 256 targets
softraid0 at root
scsibus4 at softraid0: 256 targets
root on sd0a (218c297f8386644c.a) swap on sd0b dump on sd0b
radeondrm0: RV770
radeondrm0: 2560x1440, 32bpp
wsdisplay0 at radeondrm0 mux 1: console (std, vt100 emulation), using wskbd0
wskbd1: connecting to wsdisplay0
wskbd2: connecting to wsdisplay0
wsdisplay0: screen 1-5 added (std, vt100 emulation)
